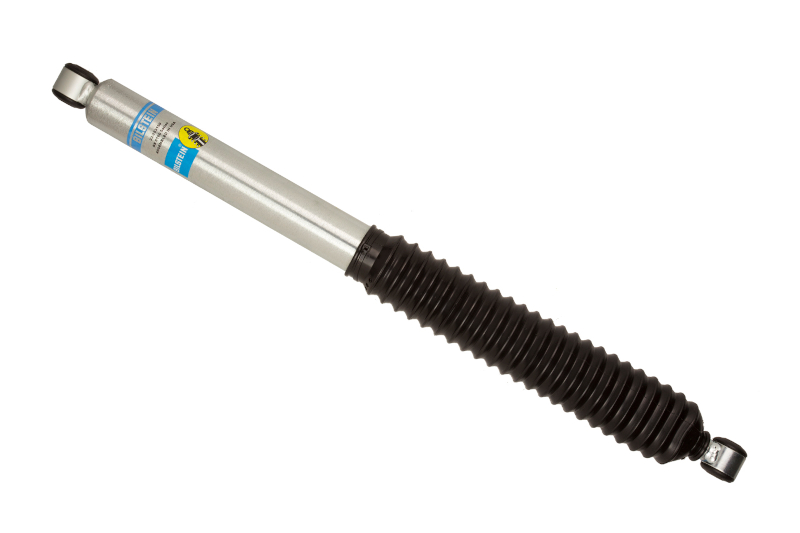

2015-2026 Ford F150 4WD Bilstein B8 5100 Rear Shock | 33-253190

Highlights:

• Greatly improves rear end stability and handling
• Single Bilstein 5100 rear shock
• Gas-charged monotube internal design
• 46mm diameter steel shock body with zinc plated finish
• Includes nitrile rubber bushings
• Can handle 1" of additional rear lift
• Easy, drop-in replacement for stock
• Will not fit 2021-2026 F150s with CCD Systems

Improves Rear Suspension Performance for Many Applications

The factory rear shocks on your F150 are fraught with compromise and really can't handle much more than basic street driving. When you need something that can handle an extra inch of lift in the rear and improves your truck's performance, you can turn to the Bilstein 5100 series rear shock. This rear shock for the 2015-2026 4WD F150s is the perfect uprated replacement for stock and comes backed by Bilstein's legendary quality and performance. The Bilstein 5100 series shock was built from the ground up for light truck applications and is the perfect choice for the F150 that does a little bit of everything. The specialized valving and high-quality piston of these shocks provide excellent off-road performance, improved towing control, and a much more planted street ride without ruining your truck's factory ride comfort.

Monotube Gas-Charged Design with Digressive Piston

The Bilstein F150 5100 series shock bolts on right in place of your truck's factory rear shocks, but features a performance-oriented design with a longer 9" of travel than stock to give your truck an extra bump in rear suspension performance, especially when used in combination with taller rear blocks. The 5100 rear shock is built around a monotube, nitrogen gas-charged design with a 46mm digressive piston. Each shock uses self-adjusting deflective disc valving that provides it with excellent response in almost any application. The body of each shock is made out of heavy-duty steel with a zinc-plated finish and a Triple-C coating for great looks and high strength.

Will not fit F150s with CCD: this shock will not fit or function on F150s with Ford's optional Continuous Control Damping (CCD) system. Please verify whether or not your F150 is equipped with CCD before ordering.

Sold separately: each Bilstein 5100 shock is sold separately and a quantity of two is required for a complete installation.
