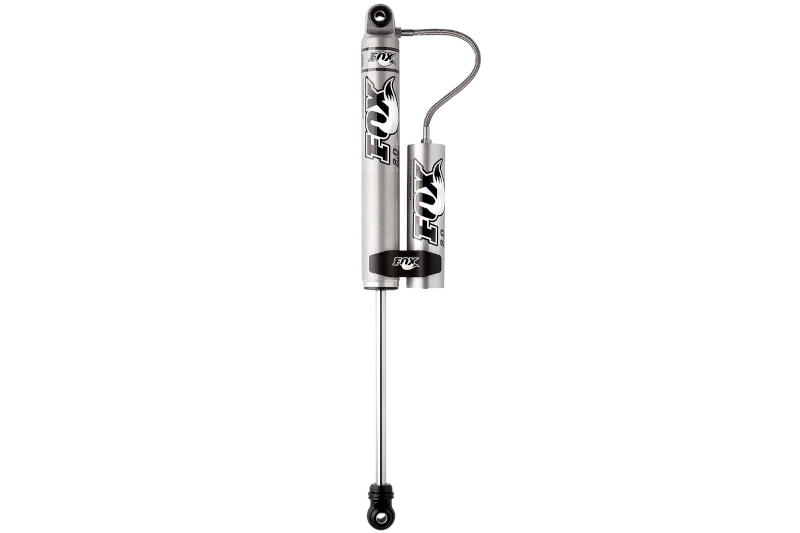

2004-2025 Ford F150 FOX 2.0 Reservoir Rear Shock for 6 inch Lifts | 985-24-055-213-27-000-BX2

Highlights:

• Remote reservoir shock that can handle 6" of lift
• Greatly improves handling and fade resistance over white-bodies
• Gas-charged monotube internal design
• 2" diameter aluminum shock body
• 2" diameter remote reservoir for increased oil capacity
• Specifically for 6" lifted 2004-2024 F150s
• Drop-in replacement for standard lift kit shocks

Greatly Improves Suspension Performance while Dramatically Reducing Fade

The standard shocks that come with most 2004-2024 F150 6" lift kits just aren't cut out for extremely aggressive off-roading, which makes the extra ground clearance from your lift and big tires kind of moot. Well, our friends over at Fox Shocks have a solution for you with this Performance Series 2.0 Remote Reservoir Rear Shock for 2004-2024 F150s with 6" lift kits. This shock is a leaps and bounds improvement over typical white-body shocks, and even performance shocks that are included in some lifts. The Fox 2.0 provides excellent levels of travel with improved rebound and compression while the remote reservoirs increase oil capacity and move hot oil out of the shot for a massive reduction in fade in even the roughest terrain.

2" Diameter Aluminum-Body Shock with Large-Diameter Remote Reservoir

The Fox 2.0 Remote Reservoir Shock bolts into your truck, and the reservoir can be mounted nearly anywhere that's convenient while adding a huge bump in suspension performance for your rear end. The shock itself is 2" in diameter with an aluminum body that improves cooling capability over the majority of steel-body shock on the market. Each shock has a 5/8" chrome-hardened shaft and valving that's been finely tuned to offer your truck excellent off-road performance with making your street ride too harsh. The reservoir is made out of 6061-T6 aluminum and has a 2" diameter that allows for the storage of a large amount of oil. The reservoir is hard anodized in a black finish which protects against corrosion. The shock mounts are made out of CNC machined billet aluminum and come standard with nitrile rubber bushings that resist more deflection than stock, but are still extremely quiet. The shock comes with a band clamp and rubber block for the reservoir that makes it easy to install and get up and running on your truck. New bushing sleeves are included to properly fit the 2004-2024 F150s.

For 6" Lift Kits Only: this shock will only fit 2004-2024 F150s with a 6" lift kit, and will not fit F150s at factory ride height.

Each Sold Separately: this shock is sold individually, and a quantity of two will be required for a complete installation.

Bushing Sleeves: this shock comes with new 12mm bushing sleeves in order to properly fit the 2004-2024 F150s.

Fitment:

• 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 F1504WD & 2WD with 6" Lift Kits
• 2004, 2005, 2006, 2007, 2008 F150 4WD with 6" Lift Kits

2004, 2005, 2006, 2007, 2008 F150 2WD Fitment: this shock is too long to fit 2004, 2005, 2006, 2007, 2008 F150s with RWD/2WD. If your 2004, 2005, 2006, 2007, 2008 F150 RWD is equipped with a 6" lift, we recommend using Fox's 2.0 Shocks for 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 2WD F150s.
