2019-2024 Ford Ranger B2021-2025 ronco RAM 1500 Diode Dynamics SS3 Stage 3 inch Sport Yellow Fog Kit | DD6344

Name: 2019-2024 Ranger Bronco RAM 1500 Diode Dynamics SS3 Stage 3 inch Sport Yellow Fog Kit
Brand: Diode Dynamics
SKU: DD6344
Price: 279.95 USD
Availability: InStock

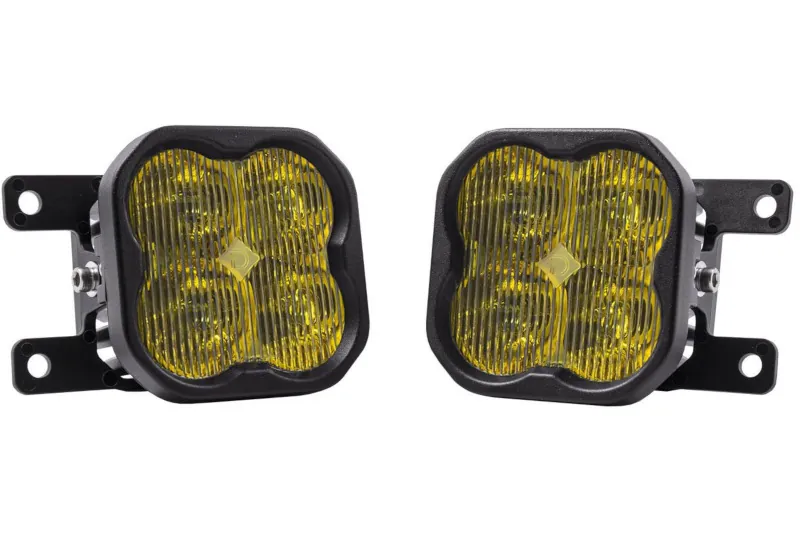

2019-2024 Ranger Bronco RAM 1500 Diode Dynamics SS3 Stage 3 inch Sport Yellow Fog Kit

SKU DD6344

2 Review(s)

$279.95

0 in stock Not for Sale

Free shipping included

60-day returns on most items

Earn reward points with this purchase

1 Customer Q&A(s)

Write a Review

**DISCONTINUED BY MANUFACTURER**

Highlights:

Replaces 2019-2024 Ford Ranger fog lamps
Includes two 3" light pods
Comes in 3000K yellow color
Uses an 80-degree fog beam pattern
Trusted by rally & endurance race teams
Great for off-road but also legal for street use

Off-Road Proven/Street Legal Fog Beam

Professional rally drivers need great lighting on the racetrack to zoom safely across the track and secure a victory. You too can win when you try new aluminum SS3 Stage Series 3" Sport Yellow Fog LED Light Pods for the 2019-2024 Ford Ranger, 2021-2025 Bronco, or 2019-2024 Ram 1500 from Diode Dynamics. It is designed to function great, fit compactly, be durable, use fog beams, and to implement custom TIR optics. All of Diode Dynamics's beam patterns were made with optical simulation modeling to make the best pattern possible. This specific model acts as an upgrader over factory foglamps. The 80-degree spread pattern excels in illuminating a wide field of view in front of your vehicle. It has a peak beam intensity of 9,050 candela, uses 1,930 raw lumens and shines 91 lux at ten meters. The light's 3000K color excels as a high contrast light in bad weather or just as a nice alternative look from standard white. While these lights are a clear choice for off-road trips, they also work superbly on the street. When installed as a pair and in accordance with your state's guidelines, the driving pattern meets SAE J583 standards as a foglamp and keeps your vehicle street legal.

Better Designed Than Competing Brands

The Diode Dynamics SS3 Stage Series 3" Sport Standard Yellow Fog LED Light Pod was built to be a compact and focused choice. These pods are designed with a pin-fin heatskink design for optimal thermal dissipation. The lights include a custom-molded bracket for plug and play installation. The 3" light replaces your stock fog light assembly. Once the OEM assembly is removed, the SS3 can bolt into place for a factory-style appearance. While it might be natural to assume smaller means weaker, that's not the case with this light pod. High-intensity automotive-type LED chips paired with a total internal reflection (TIR) optic ensure much more light output than your typical optics or reflectors. Standard optics lose light internally, increase glare and do not focus light properly. The TIR optic serves as both the optic and main lens for greater efficiency and output. The TIR receives all the LED's light, directs it where needed, and reduces glare, all at an efficient rate. The light will additionally thrive in all weather conditions and function in temperatures ranging from -40 to 185 degrees Fahrenheit.

Features Easy Connections

Stage Series LED lights comes with wire adapters to connect the SS3 to factory bulb sockets. No additional wiring is required.

Fitment:

2019, 2020, 2021, 2022, 2023, 2024, 2025 Ford Ranger
2021, 2022, 2023, 2024, 2025 Ford Bronco
2019, 2020, 2021, 2022, 2023, 2024, 2025 Ram 1500

Light Specs:

Watts: 14.5 W
Amps @ 13.2 V: 1.1 A
Peak Beam Intensity: 9,050 cd
Lux @ 10 M: 91 lux
Raw Lumens: 1,930 lm
Light Color Temperature: 3000K

Kit Contents:

Two SS3 LED Light Pods
Two H11 DT adapters
Two mounting brackets & hardware

Write a Review

2019 ford ranger xlt 4WD

The light themselves are high quality ! The hardware provided was not very impressive. Saw these on stage3m.a YouTube channel and use rubber grommets that are not included. The brackets were also different making it difficult to angle them down towards the street. Made a trip to Lowe’s to make these properly work. Nice lights but could use help in the included hardware for the ppl buying these.

Did you find this helpful? 7 of 7 Found Helpful

Reviewed by: Gio from Austin, Tx on 1/29/2021

2019 Ford Ranger Lariat

I have always had the amber fog lights on my trucks, these are higher quality than the OE . Installation took me a while, didn't time it. I was in no rush, not a mechanic, so I like to make sure I do everything right the first time. Directions were good, just read them is all. I am now getting another set of lights from Santa to put on myself

Did you find this helpful? 2 of 3 Found Helpful

Reviewed by: Keith from Middletown, Ct on 11/27/2020

Hi Will this also fit to a 2019 Ford Ranger Raptor? Thanks Oliver

Asked by: Oliver - 8/21/2023

A ranger Raptor has not yet been seen in the US to be able to verify but from what I know and have seen of those these will not work on that truck.

Was this answer helpful? 0 of 1 Found Helpful.

Answer provided by: Frank Delmas (10/11/2023)
