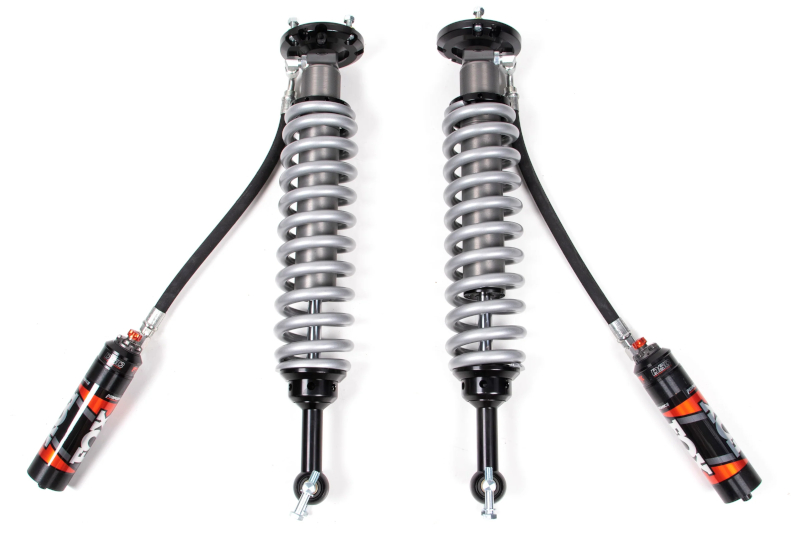

2015-2026 Ford F150 BDS Tuned FOX 2.5 Elite DSC Front Coilovers - 6" Lift - (Pair) | FOX88406327

2015-2026 F150 4WD BDS Tuned FOX 2.5 Elite DSC Front Coilovers - 6' Lift - (Pair)

SKU FOX88406327

0 Review(s)

$2,299.95

4 in stock Ships in 1 Business Day

Free shipping included

60-day returns on most items

Earn reward points with this purchase

2 Customer Q&A(s)

Write a Review

F150 BDS FOX 2.5 Performance Elite Series Front Coilovers Features:

Provides 6 inch front lift
Smooth-bore, clear coated, zinc plated alloy body
Black anodized 6061-T6 billet aluminum mounting components
7/8" hard chrome plated heat treated alloy steel shaft
High flow piston design with specially formulated race oil
External reservoir separates shock oil from high-pressure nitrogen
Easy bolt-on installation, no need to adjust coil spring preload
DSC increases both low and high-speed compression levels up to 25%

The FOX 2.5 Performance Elite Series Front Coilovers Offers More Control & Extended Wheel Travel

Without a set of premium coilovers on your F150, you will never truly understand what it is capable of. If you are ready to make a change and reinvent your driving experience and elevate your truck's performance, then you need the 2015-2026 F150 BDS FOX 2.5 Performance Elite Series Front Coilovers. They are stronger than any other aftermarket coilovers, while providing the control and extended wheel travel that you look for with this suspension upgrade. What makes these coilovers so special is that they are developed using the engineering expertise of both BDS Suspension and FOX Racing. When two great minds come together, they create coilovers that are worthy of being on your F150 build. It is hard not to feel confident riding in this truck when you have predictable handling and full control behind the wheel.

Remote Reservoir Design & Dual Speed Compression (DSC)

The FOX 2.5 Performance Elite Series Front Coilovers feature a smooth-bore, clear coated, zinc plated alloy body construction with black anodized 6061-T6 billet aluminum mounting components. This larger aluminum body is ideal for being able to dissipate heat in the most efficient way. The high-flow piston design offers more control and is optimized from increased internal oil volume that is made possible because of the remote reservoir design. The oil is specifically formulated for racing applications. However, there are no restrictions on what driving applications you can put your truck through. The 7/8" hard chrome plated heat treated alloy steel shaft along with the redundant seal pack allows you to roll through rough terrain and harsh conditions with no hiccups. What really sets this coilover apart from the rest of the aftermarket coilovers out there is the Dual Speed Compression (DSC). This feature makes sure that your F150 is ready to hit the trails with aggressive damping, precise suspension tuning, and an increase of low and high-speed compression levels up to 25%.

Vehicle Fitment: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026 Ford F150 4WD

Application Notes: Does Not fit Raptor models

Specifications:

Extended Length: 27.68 inches
Compressed Length: 21.94 inches
Travel: 5.74 inches

Write a Review

will these fit a 23 f150 platinum with dynamic bending headlights?

Asked by: jeremy robinson - 11/9/2023

These coilovers will work on a 2023 F150 as full length replacement with a lift kit 4-6" in height and would not directly affect dynamic bending headlight fitment. You want to make sure whichever lift kit you decide to go with, that the lift kit itself has the provisions to work on a truck with the dynamic bending headlights. In general most kits that maintain the factory control arms will work on a dynamic bending headlight truck, or if you go aftermarket uca, you need to make sure the uca you pick has the mounts for the sensors on them. Give our sales team a call at 623.434.5277 if you need help picking out a lift kit.

Was this answer helpful? 0 of 0 Found Helpful.

Answer provided by: Joel Galaz (11/9/2023)

Submit an answer

Will these fit a 2019 F150 Screw 4WD with a 6" Rough Country lift? What lift are these set at out of the box? I see title says, 4-6" Lift... Thank you

Asked by: Javier - 9/12/2023

Yes, according to BDS/FOX they will support a 4-6 inch lift.

Was this answer helpful? 1 of 1 Found Helpful.

Answer provided by: Ryan Zapata (10/9/2023)

Submit an answer
