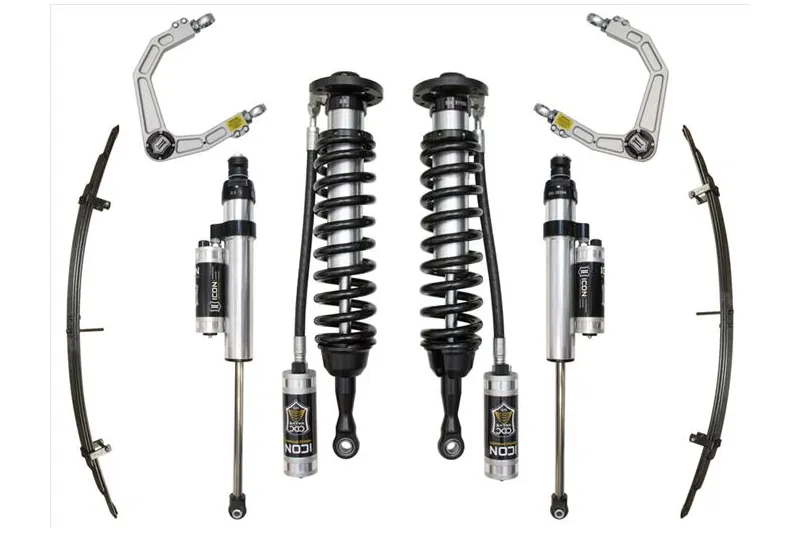

2007-2021 Toyota Tundra ICON 1-3 inch Stage 6 Suspension System (Billet UCA) | Part# K53026

Highlights:

• Boosts your Tundra's Lift 1-3"
• Increased wheel travel and ride quality
• 6061 aircraft grade aluminum components
• Corrosion- and rust-resistant
• Easy, bolt-on installation
• 1-Year Limited Warranty on Shocks
• Lifetime Warranty on Components, Springs, and Weldments

Powerful Coilover and Rear Shock Kit

There's nowhere better to turn for high-quality suspension systems than ICON and their Stage 6 Suspension System for 2007-2021 Tundra. This leveling kit contains just enough impressive suspension hardware to give your Tundra an excellent lift while stacking on amazing performance for the street or the trail. ICON's Stage 6 Tundra suspension system is a fully adjustable kit that can give you up to 3" of front lift and can handle up to 1.5" of rear lift, which allows you to fit on impressive 35" tires to help turn your truck into a beastly off-road machine. ICON's kit features a pair of awesome ICON coilover shocks for the front of your truck and a pair of ICON 2.5 VS PB CDCV Shocks in the rear for superior shock damping and control. They help give your truck excellent off-road performance while keeping your street ride smooth.

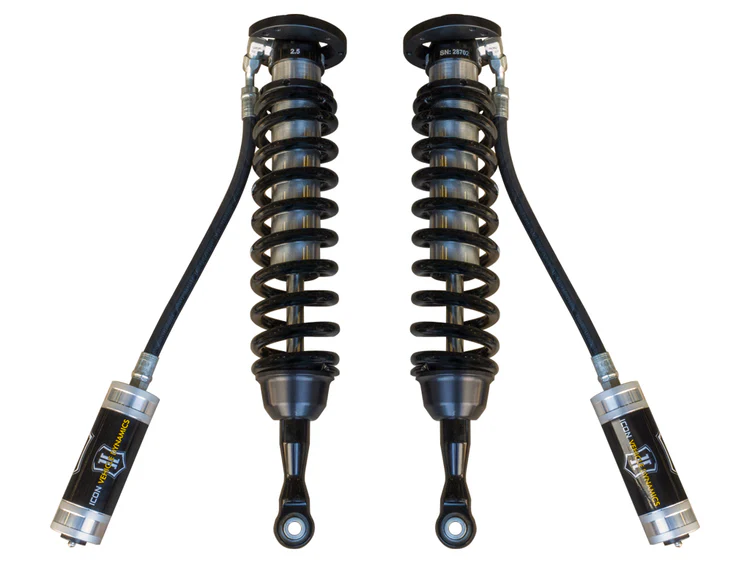

Powerful ICON 2.5 VS RR CDCV Coilovers

ICON's coilovers are all vehicle-specific and were carefully designed and tuned to give your Tundra the best performance possible. Each coilover kit consists of an ICON 2.5" aluminum CAD plated shock body surrounded by an ICON-engineered performance coil spring that provides increased front wheel travel over stock and articulation distance without compromising your truck's smooth street ride quality. This 2.5 series corrosion-resistant body includes a 7/8" shaft. The 2.5" remote reservoir provides additional heat dissipation and performance improving damping during the harshest applications. Each of the remote reservoirs features an ICON CDC Valve, which allows you to tune the ride with ten adjustment settings. The coilovers can be adjusted from stock ride height to an extra 3" of lift, which enables you to use up to 35" tires on your truck without trimming. Larger tires may be able to fit, but ICON warns that fender trimming and modifications will be required.

Includes ICON 2.5 VS PB CDCV Shocks

For the rear of your truck, ICON throws in a pair of excellent 2.5 VS PB CDCV Shocks. These shocks are long enough to handle up to 1.5" of lift if you want to bring up your Tundra's rear ride height. The 2.5 shocks are a massive upgrade from the 2.0 shocks with a massive 2.5" steel body and increased strength and heat dissipation compared to the 2.0 shocks. These nitrogen-charged monotube shocks feature one-piece digressive pistons and 7/8" nitro-steel shafts that provide excellent ride quality, performance, and reliability even under extreme conditions. Each shock features a 2.5" piggyback remote reservoir that helps with heat dissipation and shock fade during demanding applications. The ICON CDC Valve provides ten adjustment levels of compression damping force. The shocks are topped off with 6061 aluminum rod ends and polyurethane bushings that are strong and reliable enough for practically any application.

Billet UCAs for Added Strength and Performance

Icon's CNC Billet Aluminum Upper Control Arms will do wonders for the performance and durability of your Tundra suspension! Patent-pending Delta Joint technology gives you the durability and weather resistance of a ball joint while getting the performance of a uniball. ICON upper control arms additionally allow for more wheel travel when paired with extended travel coilovers. Your Tundra will have improved suspension geometry for predictable handling. Each Billet UCA is constructed from CNC-machined 6061 aluminum and given a matte anodized finish to protect against corrosion and rust.

Rear Expansion Pack Kit

The 1.5" Rear Leaf Spring Expansion Pack allows you to give the rear-end 1.5" of lift without sacrificing ride quality or a suffering a stiff spring rate. The ICON expansion pack replaces the secondary leaf springs while retaining the factory main and overload springs. The ICON spring leafs utilize modified spring rates to increase ride quality, provide 1.5" of life, and increase wheel travel, all while maintaining load and towing capacities.

Much Easier Install than Lift Kits

On top of its excellent performance and high-quality suspension package, the ICON Stage 6 Suspension Kit is extremely easy to install. The coilovers and shocks bolt-on in place of your factory shocks and front coil springs. On average, this kit can be installed in about 2 hours, saving you a ton of time over similar lift kits. The ICON Stage 5 Suspension system comes with all its necessary hardware and instructions. ICON offers a 1-Year Limited Warranty on Shocks and a Lifetime Warranty on Components, Springs, and Weldments.

Wheel and Tire Fitment: This suspension package requires at least an 8-9" wide wheel with 5" of backspacing to clear a 35x12.5" tire. Larger wheels may fit, but fender trimming and modifications will be required. Your factory wheels can be reused, but you'll be limited to a factory width tire.

Fitment Note: Installation of 35x12.5" tires may require trimming or modification.

Vehicle Fitment: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 Toyota Tundra
