2021-2025 Ford F150 4WD ICON 2.75-3.5 inch Stage 1 Suspension System - Tubular UCAs | K93131T

F-150 4WD ICON 2.75-3.5" Stage 1 Suspension System Features:

• Adjustable coilovers offer 2.75-3.5" of front lift height over stock
• Tubular Upper Control Arms with Delta Joint Pro ball joints for added strength
• Increased wheel travel and ride quality over stock
• Vehicle specific tuned shock absorbers for superior damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.0 Aluminum Series rear shocks with 5/8" hardened chromed steel shafts
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on installation

Premium Stage 1 Suspension System by ICON

Elevate your 2021-2023 Ford F-150 4WD to new heights with the ICON 2.75-3.5" Stage 1 Suspension System, featuring innovative engineering and cutting-edge technology designed to enhance your off-road experience. A key highlight of this system is the adjustable coilovers, which offer an impressive 2.75-3.5" of front lift height over stock, allowing you to accommodate larger, more aggressive wheel and tire combinations. Paired with ICON-engineered coil springs, these coilovers provide exceptional cooling properties with their internal reservoir design. The result is a remarkable increase in front wheel travel without any compromise in towing capacity, all while delivering an improved ride quality over stock.

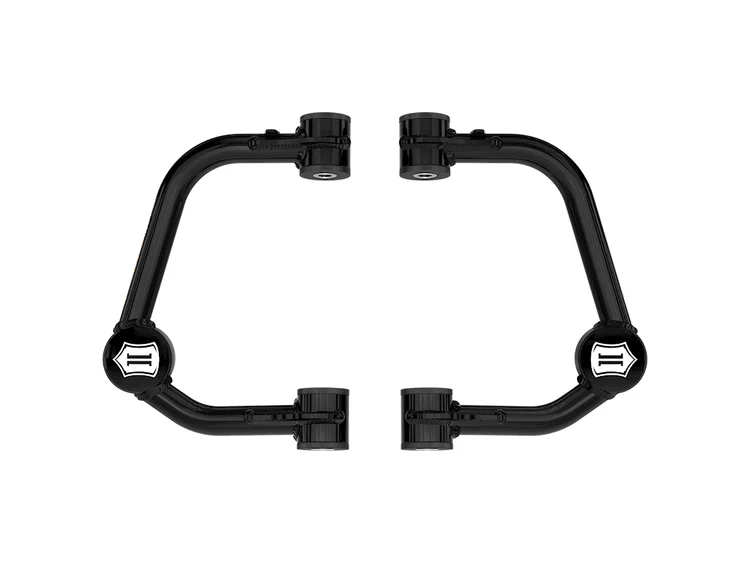

ICON Tubular UCAs with Delta Joint Pro

Tubular Upper Control Arms (UCAs) with Delta Joint Pro ball joints are at the core of this system. These UCAs offer added strength, durability, and caster correction while maintaining alignment spec range, making them the perfect companion for the extra lift height. The upper control arms in this system feature ICON's patented Delta Joint PRO, an innovative suspension articulation joint that combines the best of both worlds – the longevity of factory-style ball joints with the strength and performance of motorsports-style joints. The Delta Joint PRO offers improved articulation with 90 degrees of movement, a 14% improvement over the original Delta Joint, ensuring maximum bind-free suspension movement through the entire range of travel. The durable chromoly ball and shaft are built to withstand the toughest conditions, and the lubrication system is designed for efficient grease distribution.

High-Quality Construction & Design

The ICON Stage 1 Suspension System is a 100% bolt-on solution, requiring no drilling, cutting, or welding during installation. To further enhance your driving experience, ICON equips this suspension system with vehicle-specific tuned front and rear shocks that provide superior damping and precise vehicle control. The corrosion-resistant CAD plated coilover shock bodies with 7/8" shafts ensure long-lasting performance, and FK rod end bearings contribute to extended longevity and minimal deflection. The rear of the system features 2.0 Aluminum Series internal reservoir shocks with 5/8" hardened chromed steel shafts, striking the perfect balance of performance for your truck. ICON's commitment to quality is evident through their use of 6061 aircraft-grade aluminum CNC machined components throughout the system. With the ICON Stage 1 Suspension System, you're not just upgrading your F-150; you're enhancing its capabilities on and off the road.

Vehicle Fitment: 2021, 2022, 2023 Ford F-150 4WD

Wheel and Tire Fitment:

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Application Note:

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Will Not Work With Factory Installed Electronically Controlled Suspension
• Only compatible with 4-wheel drive (4WD) models
• Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
• Models equipped with PowerBoost hybrid engines will have front lift height range of 2.5-3.25" over stock
• Models equipped with Power-Stroke diesel engines will have front lift height range of 2.25-3" over stock
• Not compatible with F-150 Tremor or F-150 Raptor
• Not compatible with models equipped with BlueCruise
• Included rear shocks are compatible with 0-1" of rear lift over stock on most models

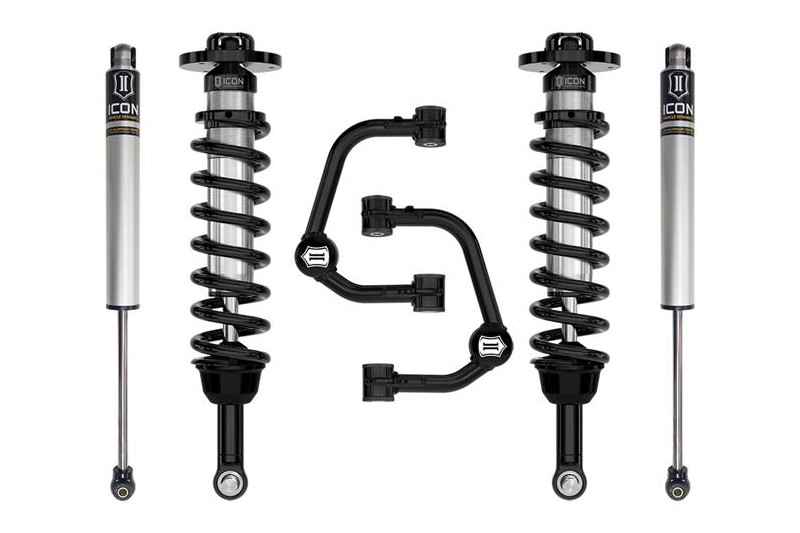

Kit Includes:

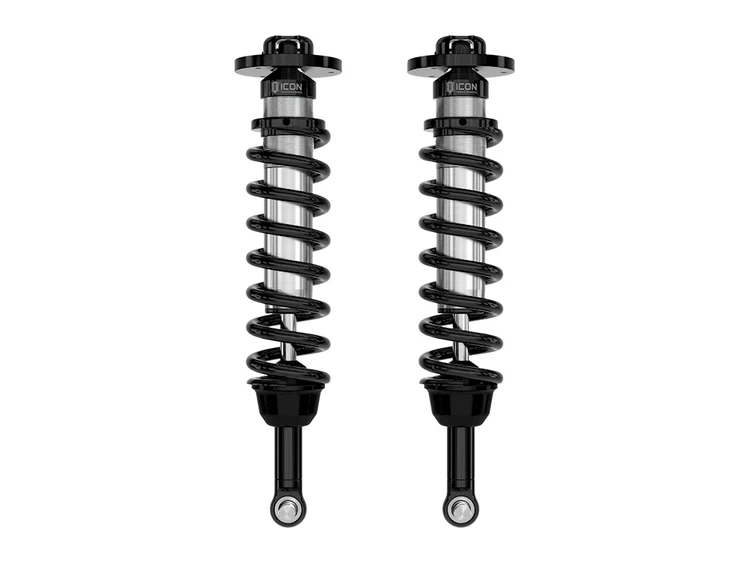

• 21-24 F150 4WD 3" LIFT 2.5 VS IR COILOVER KIT (91724)
• 21-24 F150 TUBULAR UCA DJ PRO KIT (98522DJ)
• 09-24 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR (96518)
