2021-2025 Ford F150 4WD ICON 2.75-3.5 inch Stage 5 Suspension System - Tubular UCAs | K93135T

F-150 4WD ICON 2.75-3.5" Stage 5 Suspension System Features:

• Adjustable coilovers offer 2.75-3.5" of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis
• Tubular Upper Control Arms with Delta Joint Pro ball joints for added strength
• 20% increase in front wheel travel and improved ride quality over stock
• Vehicle specific tuned shock absorbers for superior damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK rod end bearings for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 2.5 Aluminum Series piggyback reservoir rear shocks
• 6061 Aircraft grade aluminum CNC machined components
• 100% Bolt-on installation

Premium Stage 5 Suspension System by ICON

For the uncompromising and dedicated driver of the 2021-2024 Ford F-150 4WD, ICON introduces the epitome of suspension systems – the 2.75-3.5" Stage 5 Suspension System, meticulously engineered for supreme performance and precision, both on and off the beaten path. ICON Vehicle Dynamics' unwavering commitment to excellence shines through in this exceptional suspension system, designed to elevate wheel travel and damping ability, delivering unparalleled vehicle control and ride quality. The included adjustable coilovers are a standout feature, providing an impressive 2.75-3.5" of front lift height over stock, facilitating the use of larger, more aggressive wheel and tire combinations. These advanced shocks, combined with ICON-engineered coil springs, ensure superior vehicle "feel" throughout the entire range of travel. Height-adjustable coilovers allow for a significant 20% increase in wheel travel compared to other ICON F-150 coilover kits, without compromising towing capacity.

ICON Tubular UCAs with Delta Joint Pro

Tubular Upper Control Arms (UCAs) with Delta Joint Pro ball joints are at the core of this system. These UCAs offer added strength, durability, and caster correction all while maintaining alignment spec range, making them the perfect companion for the extra lift height. The upper control arms in this system feature ICON's patented Delta Joint PRO, an innovative suspension articulation joint that combines the best of both worlds – the longevity of factory-style ball joints with the strength and performance of motorsports-style joints. The Delta Joint PRO offers improved articulation with 90 degrees of movement, a 14% improvement over the original Delta Joint, ensuring maximum bind-free suspension movement through the entire range of travel. The durable chromoly ball and shaft are built to withstand the toughest conditions, and the lubrication system is designed for efficient grease distribution.

ICON CDEV Shock Technology

The ICON CDE Valve upgrade is included in this package, offering a convenient way to fine-tune your ride electronically from within the vehicle. The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that regulates the flow of oil to control the amount of damping force created by the shock during compression. With this infinitely variable valve, you can make highly precise adjustments to adapt to varying terrains, and it can react in less than 40ms. CDEV's hydraulic circuits are customized for each application, providing the highest resolution and dynamic range possible for your specific vehicle. Powered by ICON Intelligent Control (IIC) and the proprietary ICON mobile app, the system uses data from the onboard G-force sensor and Gyroscope to predict terrain and adjust shock settings via CDEV accordingly.

High-Quality Construction & Design

The Stage 5 Suspension System also includes vehicle-specific tuned front and rear shocks, ensuring superior damping and precise vehicle control. All shock absorbers are equipped with ICON's innovative CDE Valves, allowing you to easily fine tune your suspension parameters from the comfort of your vehicle. Furthermore, this complete package is 100% bolt-on, guaranteeing a hassle-free installation without any need for cutting or welding. The Stage 5 Suspension System is more than an upgrade for your F-150; it's a transformation that elevates your pickup's capabilities both on and off the road. With the ICON Vehicle Dynamics 2021-2024 F150 4WD Stage 5 suspension system, you're not just enhancing your F-150; you're embracing a new level of performance, precision, and control.

Vehicle Fitment: 2021, 2022, 2023, 2024 Ford F-150 4WD

Wheel and Tire Fitment:

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Application Note:

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Will Not Work With Factory Installed Electronically Controlled Suspension
• Only compatible with 4-wheel drive (4WD) models
• Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
• Models equipped with PowerBoost hybrid engines will have front lift height range of 2.5-3.25" over stock
• Models equipped with Power-Stroke diesel engines will have front lift height range of 2.25-3" over stock
• Not compatible with F-150 Tremor or F-150 Raptor
• Not compatible with models equipped with BlueCruise
• Included rear shocks are compatible with 0-1" of rear lift over stock on most models

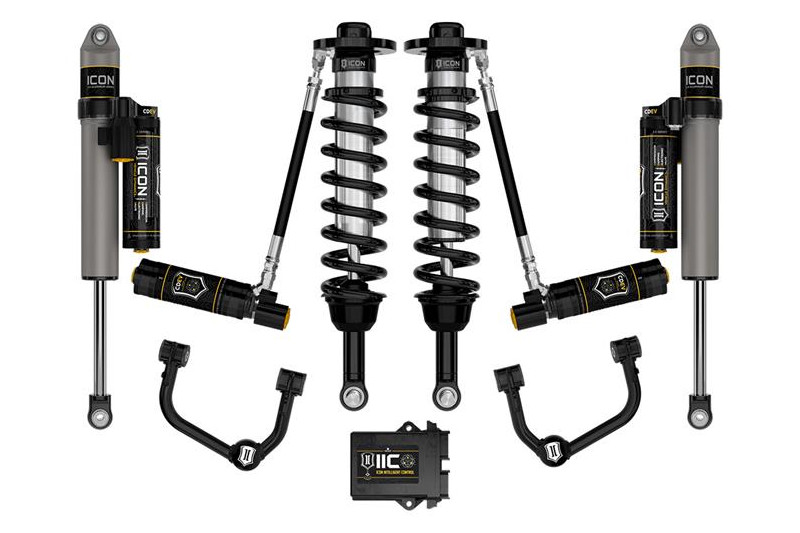

Kit Includes:

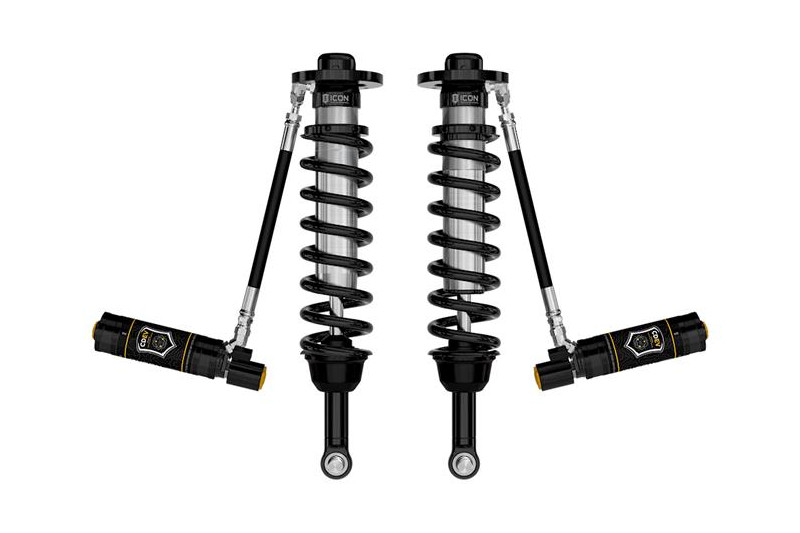

• 21-24 F150 4WD 3" LIFT 2.5 VS RR CDEV COILOVER KIT (91825E)
• 21-24 F150 TUBULAR UCA DJ PRO KIT (98522DJ)
• 15-24 F150 & 17-22 FSD IIC INSTALL KIT (93500)

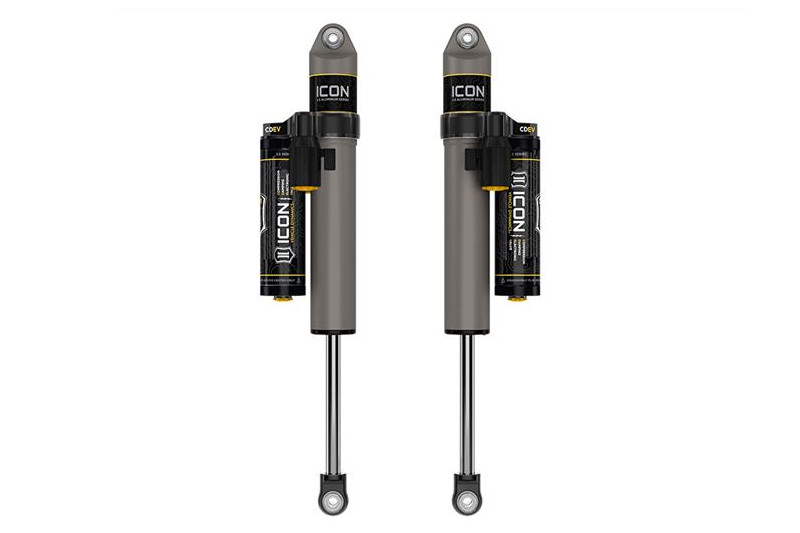

• 21-24 F150 REAR 2.5 VS PB CDEV PAIR (97720EP)
